Slimline 7 Optical Profile 1m 60D

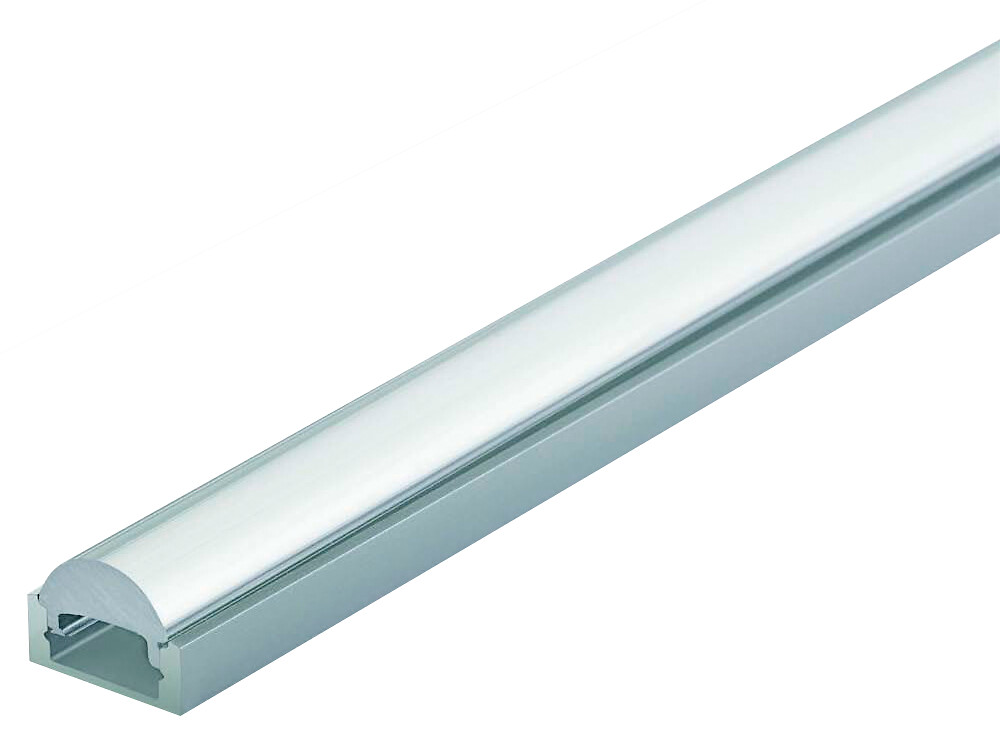

Slimline 7 Optical is an aluminium profile equipped with an optical 30° diffuser for LED strips with a maximum width of 12 mm. Ideal for applications where light needs to be targeted or restricted to achieve a sophisticated appearance. Surface mounting on a ceiling or wall. Brackets and end pieces with or without a wire opening are available as accessories. An extension piece is also available for easier installation. Read more about the other Slimline products.

Anodised aluminium body and UV-protected polycarbonate diffuser.
Suitable for use with IP20-protected LED strips with a maximum width of 12 mm.
When used with the diffuser and end caps available as accessories, the profile meets the IP21 protection class requirements.
The profile is available in 1 m and 2 m sizes and with a 30° diffuser.
End caps and mounting brackets are available as accessories.

Custom-made profile lengths (max. 6 m) are available on a project-specific basis.

Check the compatibility table for our LED strips and profiles.
