Cajo 60 Double IP65 1330lm 830/840 36D PCC GR
Cajo 60 Double Outdoor wall luminaire 10W 3000K/4000K 1330lm 36° No dim; IP65; IK08; Protection cl. I; L70B50 100000h; LED not exchangeable; CRI>80; SDCM3; Suitable for through wiring; 3x2.5mm²; Housing Aluminium; Colour gr; Cover Plastic, transparent; C16 max. 178

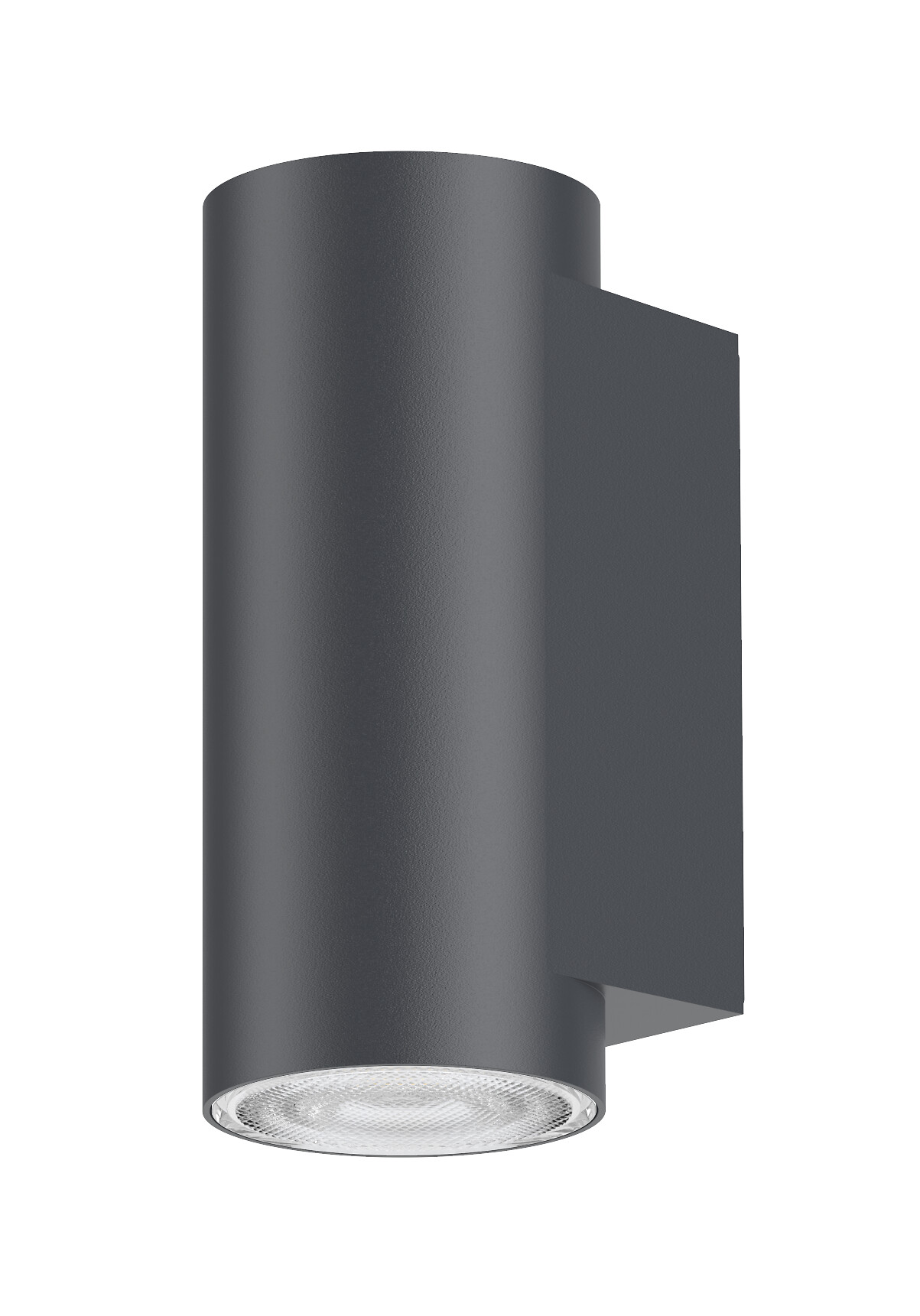

Cajo 60 Double is a bi-directional luminaire for façades and balconies. The luminaire has a slim design and a high-quality finish. The colour temperature can be selected from two options during installation. By combining different models of Airam outdoor luminaires, you can create a harmonious overall look for your project. The product ranges share a common colour selection, high-quality materials, modern design and easy installation.
Aluminium body, UV-protected polycarbonate diffuser.
Black RAL 9005, grey RAL 7024 and white RAL 9016.
Protection class I.
Surface-mounted wall installation.
Suitable for through-wiring 3 x 1.5/2.5 mm².
CCT 3000 K / 4000 K selectable from the luminaire. CRI > 80 / Ra > 80.
Integrated LED 10 W 1330 lm.
MacAdam 3 SDCM.
IP65.
IK08.
On/off.
Ambient temperature range -35 … 25 °C.
Rated life time L80B50 100 000 h (Ta25°C).
- Electrical number (SWE)
- 7707002
- Code
- 100120
Technical info
| Item description | Electrical number (SWE) | Code | Colour temperature | Luminous flux | Power | Dimensions | ||
|---|---|---|---|---|---|---|---|---|
|
Cajo 60 Double IP65 1330lm 830/840 36D PCC BK | 7707001 |
100118 |
3000/4000K |
1020-1330lm |
10W |
75x60x141mm |
|
|
Cajo 60 Double IP65 1330lm 830/840 36D PCC GR | 7707002 |
100120 |
3000/4000K |
1020-1330lm |
10W |
75x60x141mm |
|
|
Cajo 60 Double IP65 1330lm 830/840 36D PCC WH | 7707003 |
100124 |
3000/4000K |
1020-1330lm |
10W |
75x60x141mm |
- Electrical number (SWE)
- 7707002
- Electrical number (FIN)
- 4546589
- GTIN
- 6435200325389
- Code
- 100120
